Description

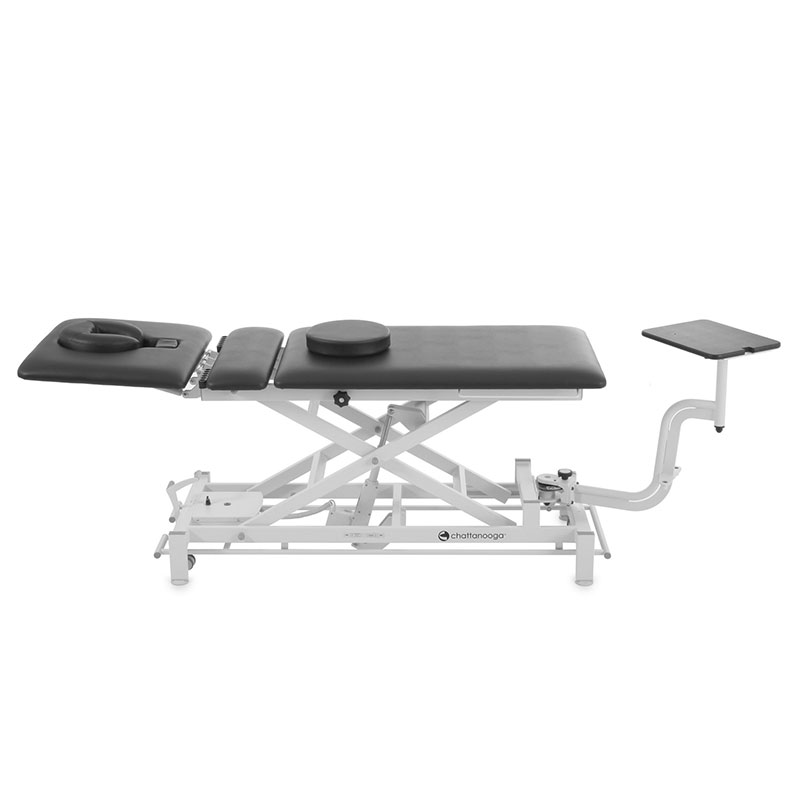

Chattanooga® Galaxy TTET300 Black
The Galaxy TTET300 is a multifunctional 3-section traction table which, in conjunction with a traction unit, aids in efficient spinal traction treatment.
This unit comes with a Footswitch.
Optional axilla posts can be purchased to add to the tablefor added stability for your patient, but they are not required to us this unit. Optional axilla post package must be added at the time of order.
The TTET300’s roller-mounted surface helps prevent friction below the hips and legs, aiding in the full traction force during vertebral treatment. In addition, because the rolling sections can be locked in place, this variable-height traction table can also serve as an additional treatment table.
•A scissor frame with four feet and four multidirectional, retractable wheels for easy transport
•Provides maximum patient comfort in prone and supine positions to aid both manual therapy and traction therapy
•Roller-mounted surface helps prevent friction below the hips and legs.
• Repositional head /back section elevates to 82°
• Gas spring assists on friction-free moveable sections for easy positioning.
• HalloTronic™ + System enables electric high/low height adjustment from 19 to 39 inches with capacity up to 440 LBs
*Optional axilla post package for added stability for your patient. Must be added at the time of order.
TECHNICAL SPECIFICATIONS :
Mains Power: 120 V~ 50/60 HZ
Current: Max 2A with 120V
Dimensions:
Head section 23 inches
Middle section 8 inches
Leg section 44.7 inches
Width 27.5 inches
Total table length 79.5 inches
Total length with traction platform 103 inches
Adjustment:
Angle Inclination Head: -10° to +82°
Displacement Leg: 6 inches
Height min: 19 inches
max: 39 inches
Dynamic lifting
capacity: 440 LBs
Max. workload: 605 LBs
Electrical Safety
Class: Class I, Type B
Safety Tests: CE, Class I Rule 12
Shipping Weight 330 LBs
Shipping Dimns.
(LxWxH) inches: 86.6×33.5×31.5 inches
Table Weight: 274 LBs
* Dimensions are listed as L x W x H
This unit ships as a freight item. Meaning there will be a flat rate of freight for this item.
