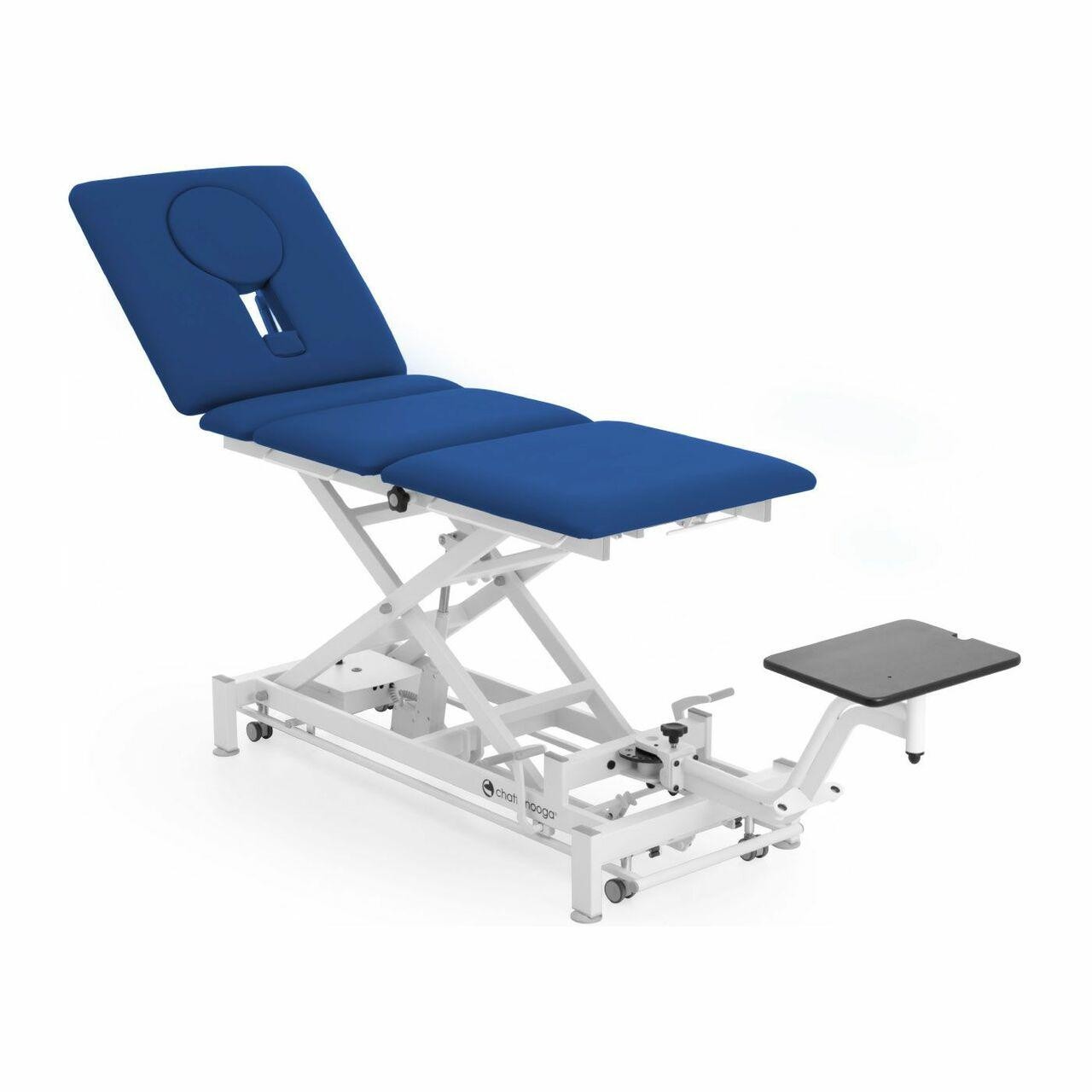

3267119US -Chattanooga Galaxy -TTET400 – Imperial Blue –
Call / Email for LOWEST price: 423-870-9030 / office@chattmed.com
The Chattanooga Galaxy TTET400 Traction Table is a multifunctional table that has four independent sections and is designed to be used for traction treatments. Available in six colors.
Description
The Chattanooga Galaxy TTET400 Traction Table is a multifunctional table that has four independent sections and is designed to be used for traction treatments.
THIS TABLE DOES NOT INCLUDE THE TRACTION UNIT.
Warranty:
-
Cushion and Upholstery – 1 Years.
-
Base Frame and Motor – 2 Years.
The Chattanooga Galaxy TTET400 Traction Table is equipped with a roller-mounted surface and comfortable upholstery that prevents friction below the hips and legs. This enables patients to get the most benefit from their spinal traction treatment, as the rolling sections can be locked. Height adjustmeent is easy and smooth, thanks to the scissor frame and electric HalloTronic + System. The table can support a weight capacity of 440 lb (with a maximum workload of 605 lb).
 This table is ideal for both prone and supine positions when it comes to manual or traction therapy. When not in use, it can also function as a standard treatment table.
Length of the head section: 70 cm (27.6 in) Length of the middle section: 21 cm (8.3 in) Length of the pelvic section: 45 cm (17.7 in) Length of the leg section: 67 cm (26.4 in) Table width: 70 cm (27.6 in(
Head section inclination angle adjustment from: 0 to +80 deg. Head section declination angle adjustment from 0 to -30 deg
Features
- A Scissor frame with four feet and four multidirectional, retractable wheels for easy transport
- Provides maximum patient comfort in prone and supine positions to aid both manual therapy and traction therapy
- Roller-mounted surface helps prevent friction below the hips and legs
- Repositional head /back section elevates 82° and leg section to 73°
- Gas spring assists on friction-free moveable sections for easy positioning
- HalloTronicTM+ System enables electric high/low height adjustment from 19 to 39 cm with capacity up to 440 LBs
*Optional axilla post package for added stability for your patient. Must be added at the time of order.
Chattanooga Galaxy TTET400 Traction Table Specifications
- Mains Power: 120 V, 50/60 Hz.
- Current: Max 2A with 120 V.
- Dimensions:
- Head Section: 23″.
- Middle Section: 8″.
- Pelvic Section: 9.8″.
- Leg Section: 47″.
- Width: 27.5″.
- Total Table Length: 79.5″.
- Total Length with Traction Platform: 103″.
- Adjustment:
- Angle Inclination:
- Head: -10 degrees to +82 degrees.
- Leg: 0 degrees to 73 degrees.
- Displacement: Leg: 6″.
- Height:
- Minimum: 19″.
- Maximum: 39″.
- Angle Inclination:
- Dynamic Lifting Capacity: 440 lb.
- Maximum Workload: 605 lb.
- Electrical Safety Class: Class I, Type B.
- Safety Tests: CE, Class I Rule 12.
- Shipping Weight: 330 lb.
- Shipping Dimensions: 86.6″ x 33.5″ x 31.5″.
- Table Weight: 274 lb.
Additional information
| Beige | Chattanooga TTET-400 GALAXY TABLE – in BEIGE |
|---|---|
| Light Blue | Light Blue |
| Gray | Gray |
| Graphite Gray | Graphite Gray |
| Black | Black |
| Imperial Royal Blue | Imperial Royal Blue |
