Description

70003 – Vectra NEO Ch 3 & 4 E-stim module  FOR USE WITH THE VECTRA NEO UNIT.

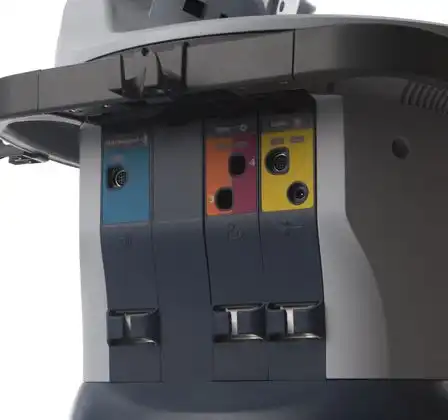

THIS IS NOT THE UNIT. THIS IS A MODULE THAT FITS INTO TO THE VECTRA NEO UNIT, TO ALLOW FOR THE USE OF CH.3 & 4 Electrical Stimulation.



• Stim Module: The NEO Ch 3 & 4 E-stim module allows the user to add electrical stimulation with 2-channels (4 electrodes at once) and have access to many other stim features, including additional waveforms. If you have the Ch. 1 & 2 module, you will have the capability to use (8) electrodes at once.






• The NEO Ch 3 & 4 E-stim module can be used indications for pain management, tissue healing, and rehabilitation purposes.





• Installation: Proper installation of the NEO Ch 3 & 4 module is crucial for effective and safe use.





• Consult User Manual: Before installation, refer to the user manual provided by Chattanooga for detailed instructions.





• Locate Appropriate Port: Identify the appropriate port on the Chattanooga Vectra NEO device for connecting the Ch 3 & 4 module.





• Secure Connection: Ensure a secure and stable connection between the NEO Ch 3 & 4 Stim Module and the Vectra NEO device.





• Power On: Power on the Vectra NEO device and verify that the NEO Ch 3 & 4 Stim Module is recognized and functioning properly.





• Set the desired parameters such as frequency, intensity, and treatment time according to the specific therapeutic requirements of the patient.





• Positioning: Properly place the electrode pads on the target area, ensuring good contact.





• Start Treatment: Initiate the therapeutic E-Stim by activating the NEO Ch 3 & 4 Stim Module E-stim board using the recommended treatment protocols (unit has therapeutic library).





• Monitor and Adjust: Continuously monitor the treatment progress and make necessary adjustments to the settings as needed.





• Safety Precautions: Adhere to all safety guidelines provided by Chattanooga to ensure patient safety during Electrical stimulation therapy.





• Healthcare professionals should receive appropriate training and certification in therapeutic electrical stimulation techniques before using NEO Ch 3 & 4 Stim Module for Electrical Stimulation on patients.
