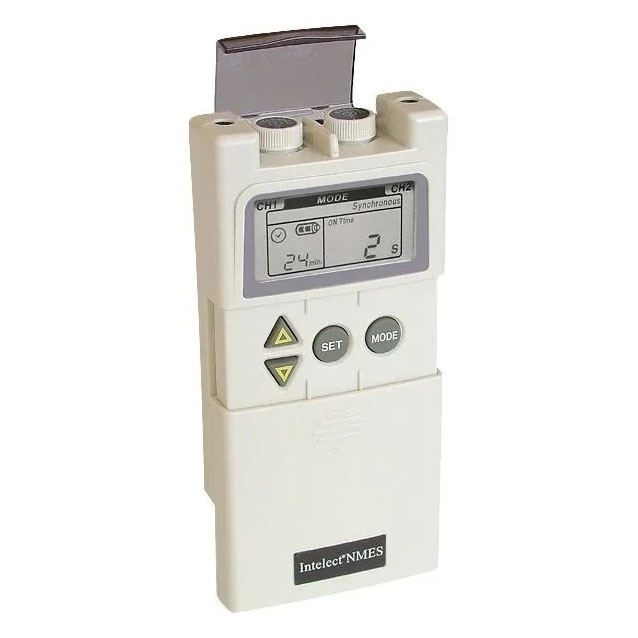

Chattanooga Intelect 77717 Portable NMES Unit
The Chattanooga Intelect 77717 Portable NMES Unit is a compact digital electrotherapy device designed to provide neuromuscular electrical stimulation (NMES) in clinical and rehabilitation settings. Its portable, battery-powered design allows treatment to continue without requiring a stationary electrotherapy system.
The Intelect NMES Digital is designed for applications including the prevention of disuse muscle atrophy, muscle re-education, increasing range of motion, and increasing local circulation. Two independent channels provide flexible electrode placement and allow clinicians to configure stimulation according to the patient’s treatment plan.
_________________________________________________________________________________________________________________________________
Dual-Channel Neuromuscular Electrical Stimulation
The 77717 features two isolated stimulation channels with independently adjustable output. Treatment parameters can be customized using convenient digital controls and an easy-to-read LCD display.
The unit provides three stimulation modes:
Synchronous – coordinates stimulation through both channels.
Constant – provides continuous stimulation according to the selected parameters.
Alternate – alternates stimulation between channels.
Pulse amplitude, pulse frequency, pulse width, contraction and relaxation times, and treatment time can be adjusted for individual treatment requirements. Chattanooga specifies an adjustable pulse frequency of 2–120 Hz, pulse width of 50–300 μs, and output of up to 80 mA per channel at a 500-ohm load.
_________________________________________________________________________________________________________________________________
Compact Portable NMES Therapy
Measuring approximately 1.2″ × 2.3″ × 4″ and weighing approximately 4.4 oz, the Intelect 77717 is small enough to transport easily between treatment areas or for clinician-directed use outside a traditional therapy department.
Because the unit operates from a 9-volt battery, treatment does not require connection to a wall outlet.
_________________________________________________________________________________________________________________________________
Portable NMES Unit Features
- Dual independent, isolated stimulation channels
- Asymmetric biphasic square-pulse waveform
- Adjustable stimulation intensity
- Adjustable pulse frequency from 2–120 Hz
- Adjustable pulse width from 50–300 μs
- Adjustable contraction and relaxation parameters
- Three stimulation modes: Synchronous, Constant and Alternate
- Digital controls with LCD display
- Compact, lightweight design
- Battery-powered operation
- Designed for neuromuscular electrical stimulation and muscle re-education
These specifications are consistent with Chattanooga’s current manufacturer listing for the Intelect NMES Digital 77717.
_________________________________________________________________________________________________________________________________
What’s Included with the Chattanooga 77717?
The Chattanooga Intelect Portable NMES Unit includes:
Intelect NMES Digital Unit
Lead wires
9-Volt Battery
DURA-STICK® Self-Adhesive Electrodes
Carrying Case
The manufacturer lists 77717 as the ordering number for the Intelect NMES Digital Unit.
Product Specifications:
| Specification | Chattanooga 77717 |
|---|---|
| Product Type | Portable NMES Unit |
| Channels | Dual, isolated |
| Waveform | Asymmetric biphasic square pulse |
| Pulse Amplitude | 0–80 mA per channel |
| Pulse Width | 50–300 μs |
| Pulse Frequency | 2–120 Hz |
| Dimensions | 1.2″ × 2.3″ × 4″ |
| Weight | 4.4 oz |
| Power | 9-Volt Battery |
| Item Number | 77717 |
